Equipment classification:
: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
The master is a personal version of the device, which can be used freely after purchase. You can obtain our company's service software ECUHELP for free. All functions on the software are free to use. The software provides ECU model query, wiring diagram search, virtual data download, DEMO download, and free software library. And Data modifier number change expert software.
Product contents:
* Hardware
* Software
* Auto version: Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear
* Full configuration version: Car OBD, Truck OBD, Tractor OBD , Boat OBD, Motorbike OBD , Full System , BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear,
* Increaseable license: Tractor OBD ,Boat OBD, Motorbike OBD,TCU Gear,
Function of the device:
Read and write ECU data,and the data can be used for ECU services.
What is ECU service?
ECU service includes 2 major items:
* Chip tuning
Chip tuning is to improve engine performance by modifying the data read out by the equipment. The data is divided into: Stage 1 , Stage 2 , and Stage 3 .
* ECU maintenance.
ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Removal,EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax , and so on.
Reasons of Chosen

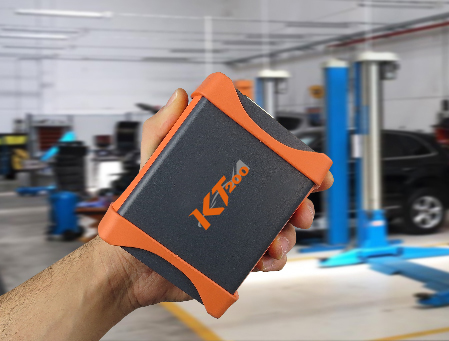

KT200 is a complete tool for reading and programming engine control units via OBD and via the Boot mode and Jtag systems. Full system and Bench mode also available.A unique solution for the mechatronics.TCU package for automatic transmissions available.
1. KT200 allows serial communication with the Engine and Automatic transmission control units
via the OBD diagnostic socket.
2.It also allows communication in: BDM and JTAG,BOOT MODE ,BENCH MODE (or Service mode)
FULL SYSTEM via pinout
3.Professional software for reading and programming the control units of :
* CAR
* TRUCK
* MOTORBIKE
* TRACTOR
* BOAT
* Additional TCU package available for Automatic Transmissions.

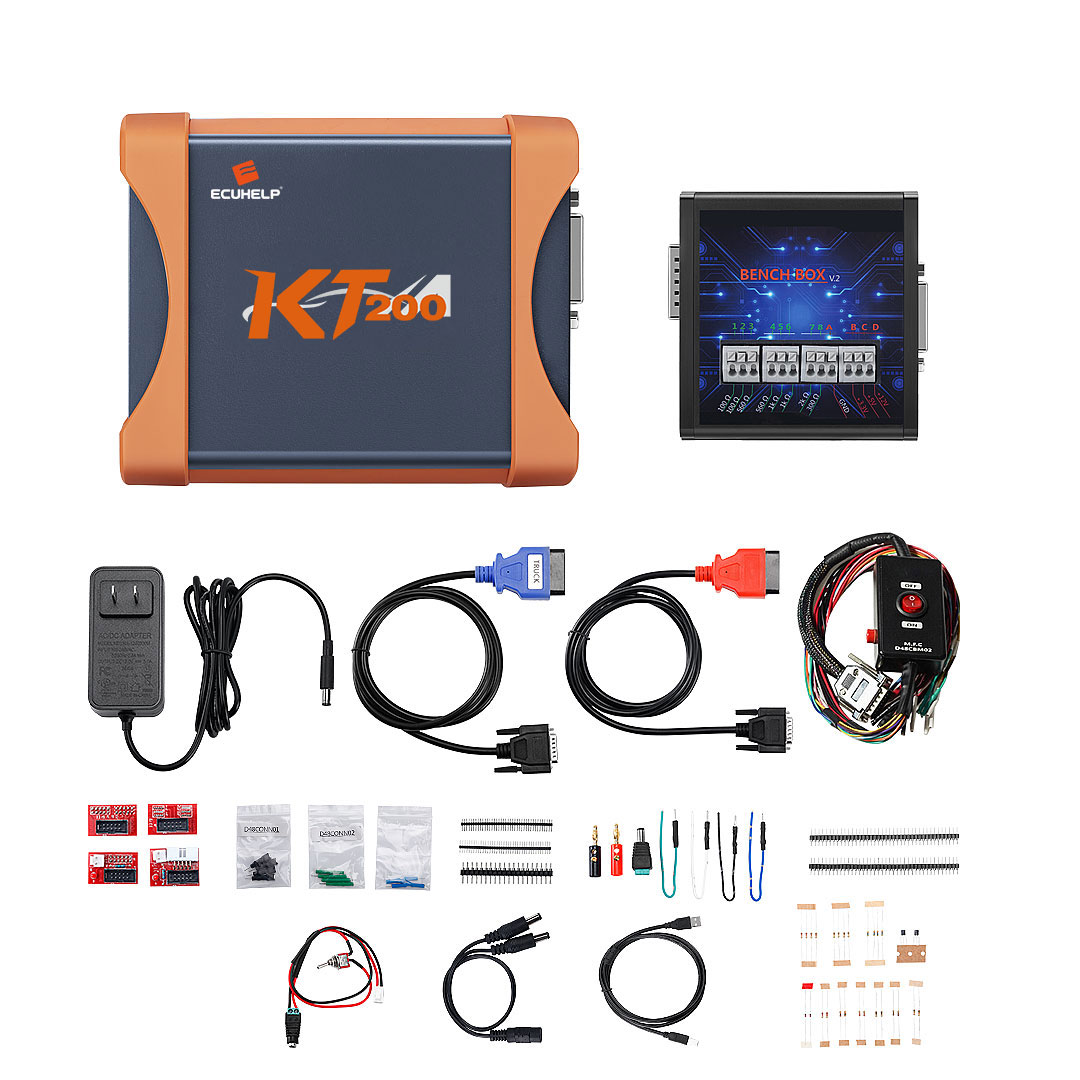

Hardware product list:
Master x 1,
BENCH BOX x1,
OBD wires x 2,
Pinout line x 1,
BOM adapter x4 ,
Transfer cables x 3,
Power wire x 4,
Set of resistors x1,
Adapter plugs x 4 sets,
Power adapters x 5 sets
Software: The product software includes 10 licenses:
Car OBD, Truck OBD, Tractor OBD ,Boat OBD, Motorbike OBD ,Full System , BDM/JTAG ,TOOL BOOT,Bench Mode,TCU Gear.
Product details:

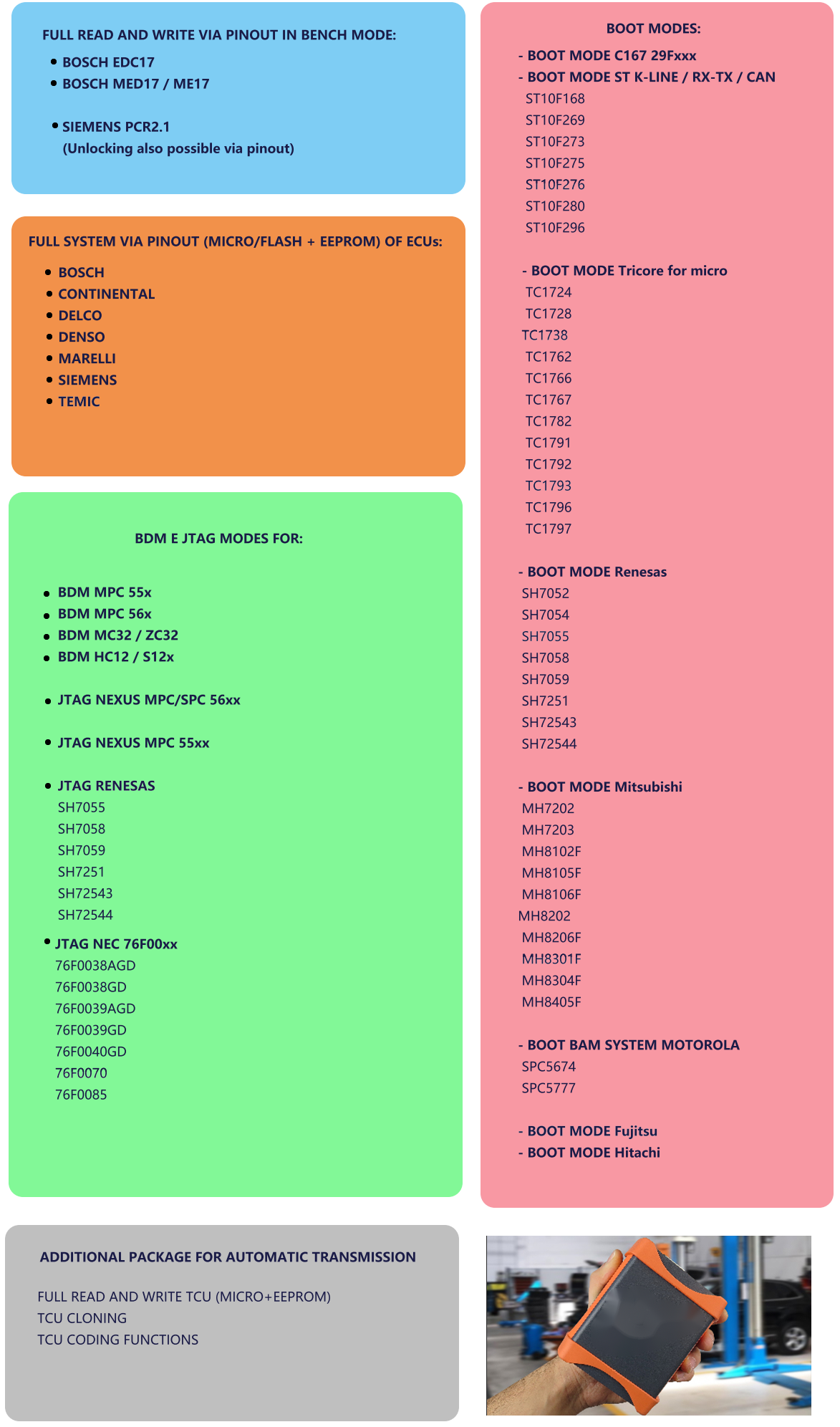

Multiple connection possibilities:

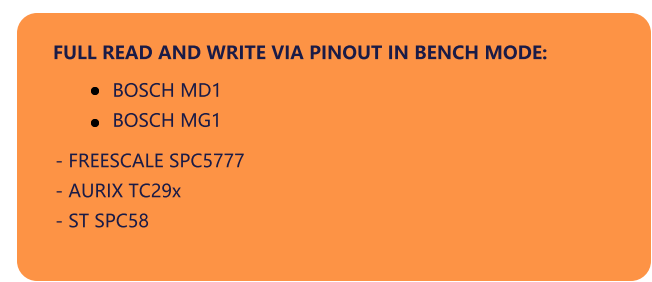

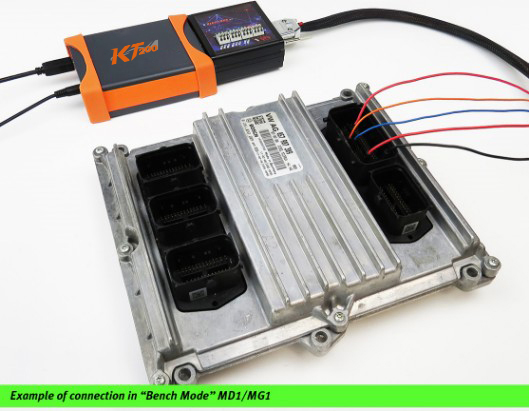

JTAG CONNECTION BENCH MODE ECU BOSCH MD1 - MG1

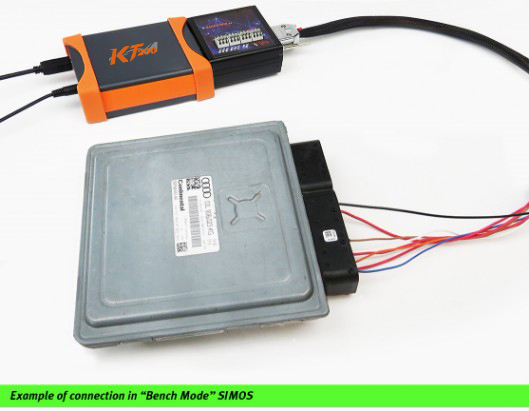

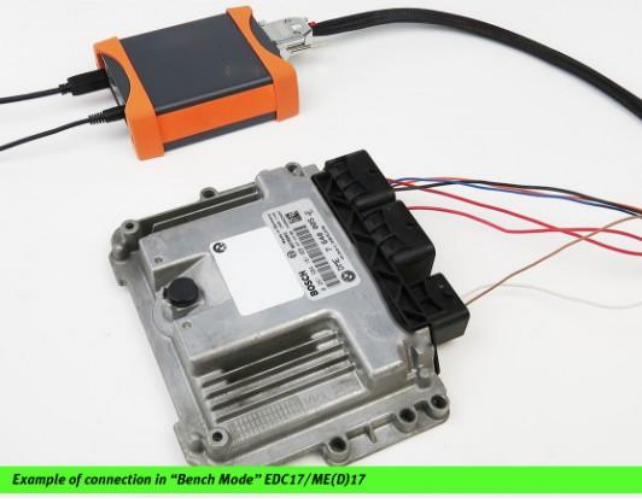

BENCH MODE EDC17 / MED17 BENCH MODE SIMOS

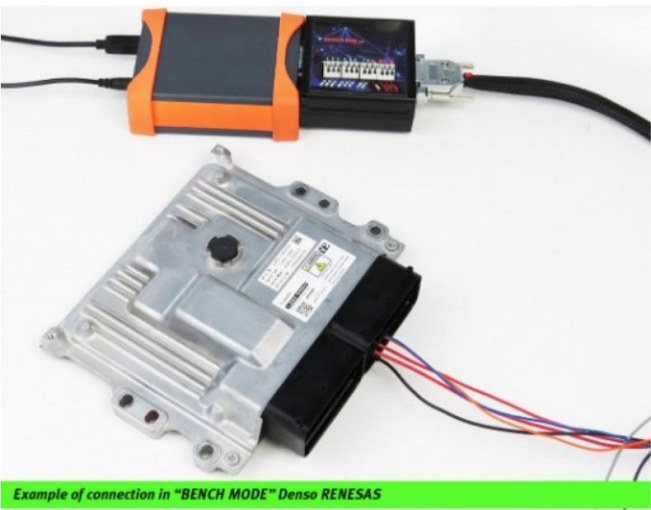

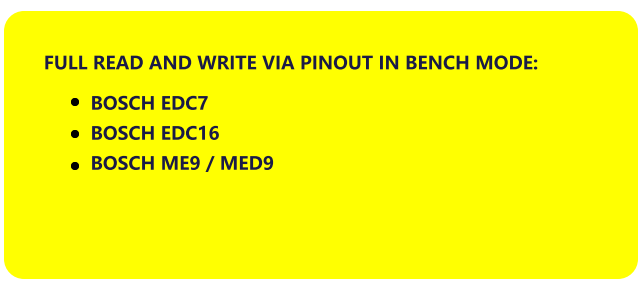

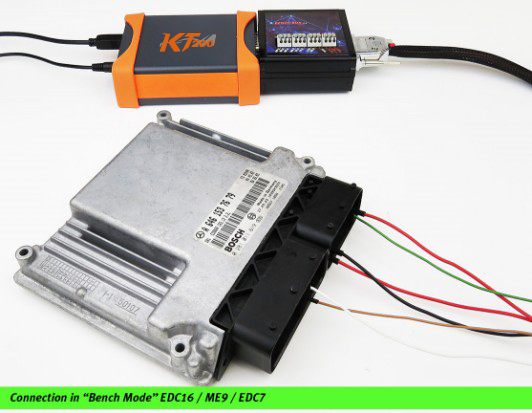

BENCH MODE EDC16 / ME9 / EDC7 BENCH MODE DENSO MICRO RENESAS

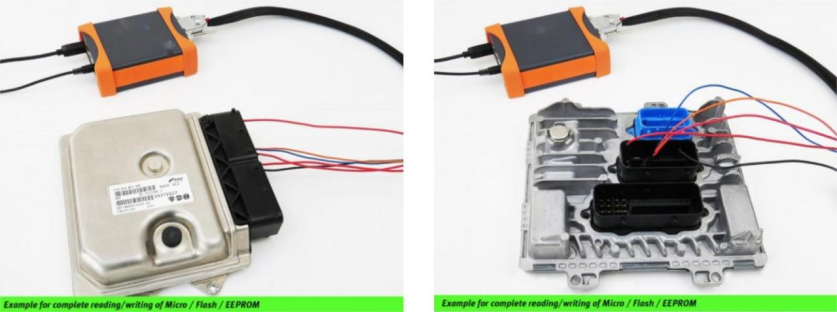

EXAMPLES OF CONNECTION IN FULL SYSTEM ：BOSCH / DELCO / DELPHI / DENSO / MARELLI / SIEMENS / CONTINENTAL / TEMIC

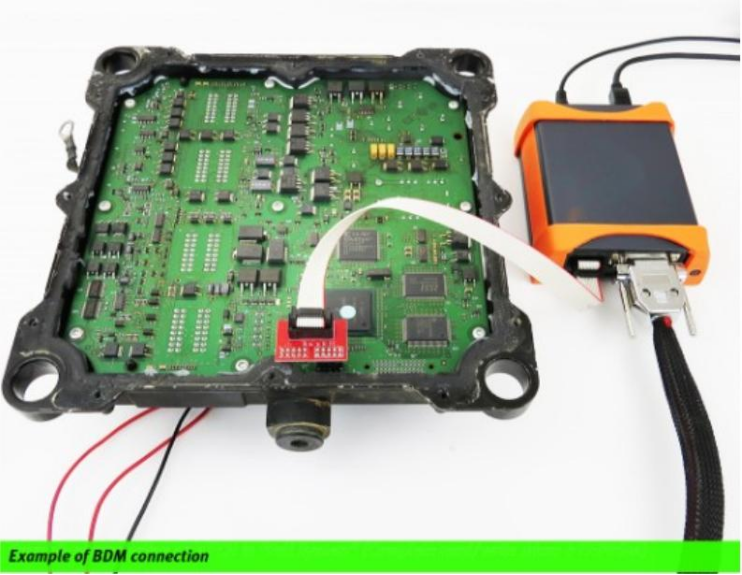

BDM CONNECTION BOOT MODE CONNECTION

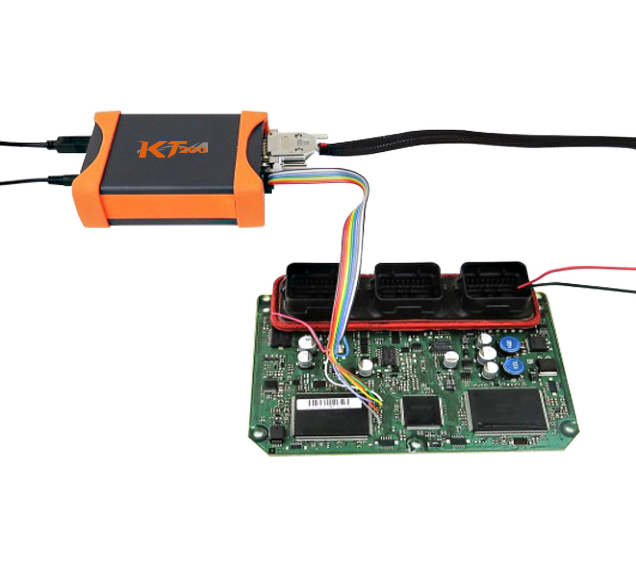

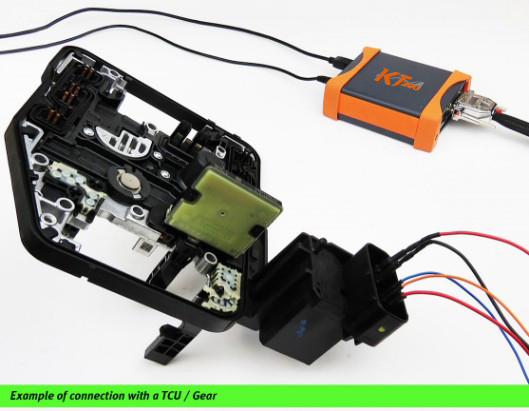

JTAG CONNECTION BENCH CONNECTION WITH AUTOMATIC GEARBOX
With TFOX, every sector is at your fingertips!

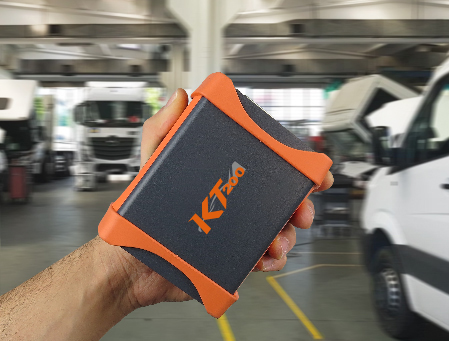

Cars TRUCKS

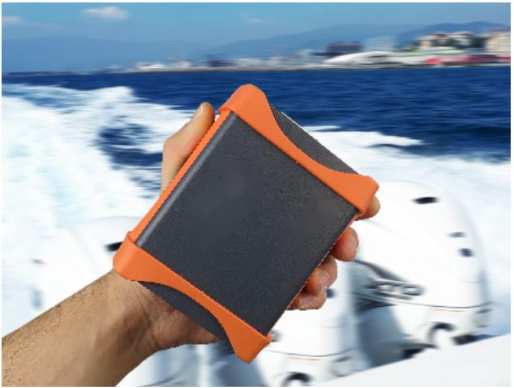

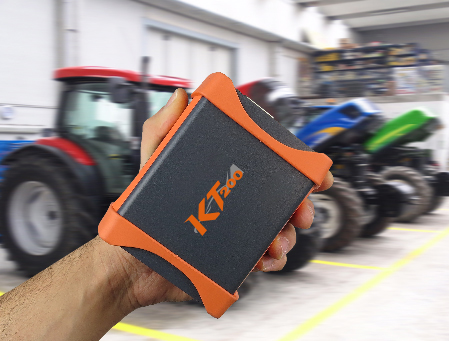

MOTORBIKES MARINE TRACTORS, EXCAVATORS and INDUSTRIAL ENGINES
